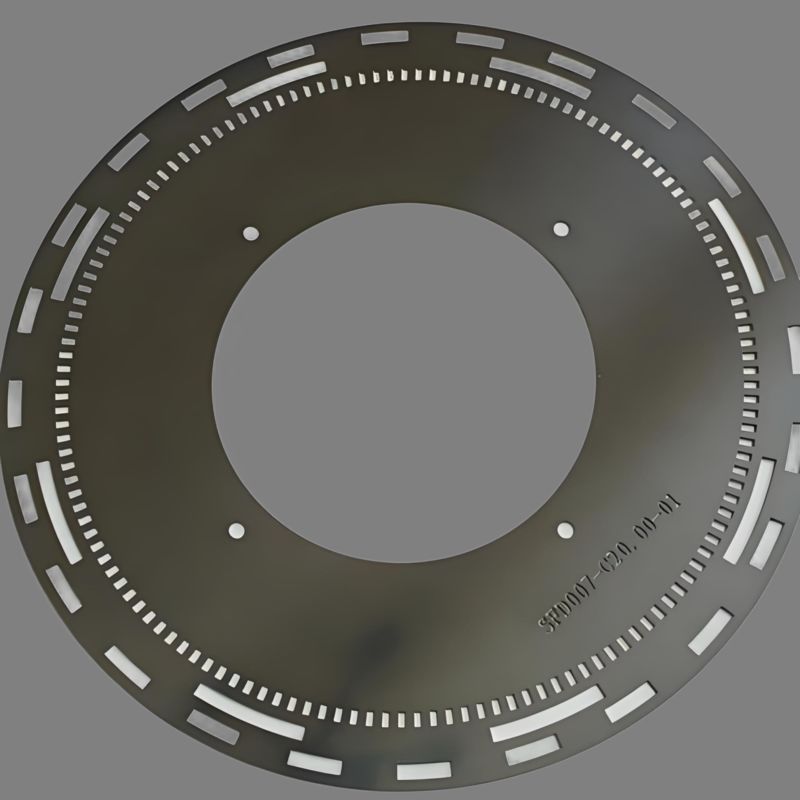

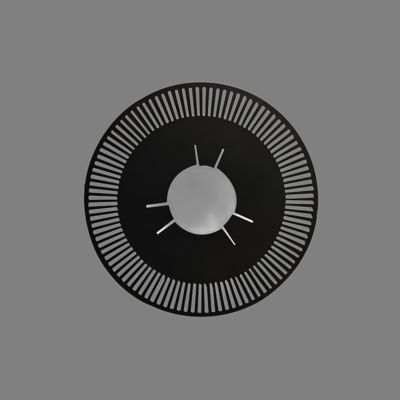

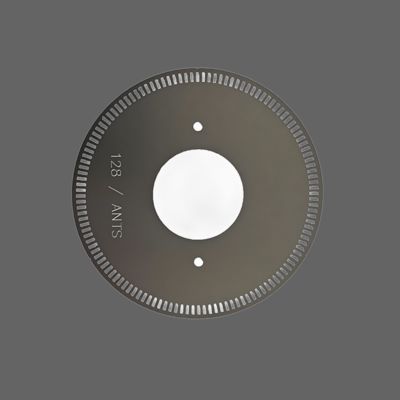

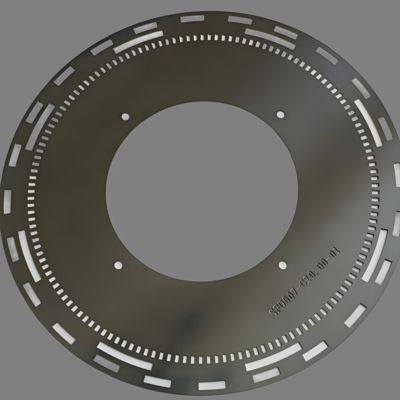

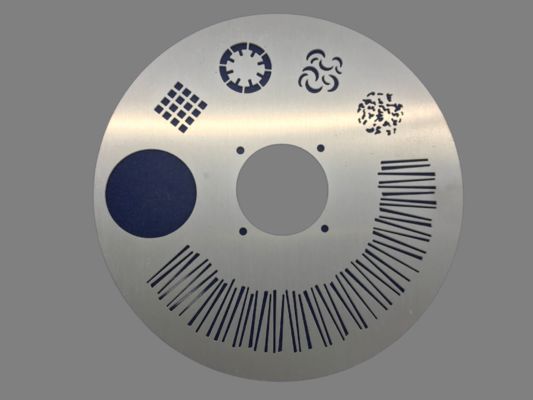

Chemical etching stainless steel encoder disk for optical encoder sensor

Name: Chemical etching stainless steel encoder disk for optical encoder sensor
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Menurut file proyek Anda
Availability: InStock

Nama merek:	customized
Nomor Model:	Menurut file proyek Anda
Moq:	terbuka untuk dibahas
Harga:	open to negotiate
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	100.0000 pcs

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Shenzhen, Cina

Sertifikasi:

ISO9001,ISO14000

Metode pemesinan:

Etsa kimia

Sedang mengemas:

Masing -masing dalam pengepakan kayu

Paket transportasi:

Masing-masing dalam polybag

Merek dagang:

Tidak ada

Kode HS:

7613405000

Bahan:

Baja, kuningan, tembaga, aluminium

Spesifikasi:

Menurut file proyek Anda

Lubang terbuka terkecil:

D = 0,1mm saat ketebalan kisaran dari 0,03mm hingga 0,05mm 1,5*ketebalan

Kemasan rincian:

paket dipesan lebih dahulu

Menyediakan kemampuan:

100.0000 pcs

Menyoroti:

stainless steel encoder disk

optical encoder sensor disk

photo etched encoder disk

Deskripsi produk

Chemical etching stainless steel encoder disk for optical encoder sensor

Encoder specification:

Machining Type	photo chemical etching stainless steel precision optical encoder disk
Material Capabilities	Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Aluminum, Alloy (Thickness from 0.03 mm up to 1 mm)
Product Dimension	220*280 mm
Product precision	0.01
Smallest open hole	D= 0.1mm when Thickness range from 0.03mm to 0.05mm 1.5*Thickness
Centre to Centre for holes	1.5*Thickness
Surface treatment	Surface treatment

Photo Etching is flexible, highly accurate and effective at any volume. The photo etching process is known by many names, including chemical etching, acid etching and photo chemical machining (PCM).

Metal Selection

Xinhaisen offer a huge range of metals for etching including: Stainless Steels, Carbon Spring Steels, Copper, Brass, Nickel Silver, Mild steel, Phosphor Bronze, Silver, Beryllium Copper, Aluminium, Nickel, Mu Metal, Alloy 42, Alloy 52 & Many Others.

Benefits of Photo Etching

Precise Tooling
The photo-tool artwork for photo chemical etching is free of charge here at xinhaisen, as we like to invest in our customers future.
Risk-Free Design
With the ability to produce rapid prototypes with short lead times, the complexity of your design is often not an issue. We will manufacture to your required drawings and to your exacting standards.
Right First Time
The chemical etching process does not use mechanical force or heat, which means that the metals properties remain unchanged. The temper of material is also not altered and parts are completely burr-free and stress-free.
No Finishing Required
Our metal etching process leaves no rough edges or burrs, therefore no additional deburring process is often required.
A variety of Thicknesses
A huge variety of different material types and thicknesses can be photo etched, ranging from 0.0127mm through to 1.60mm thick.
Tolerances From ±0.025mm
As your components features are all etched simultaneously, the complexity achievable can be impressive with profile tolerances achievable from ±0.025mm.
